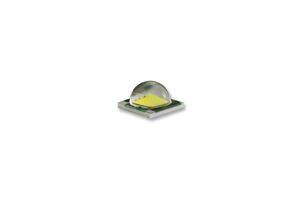

CREE  XMLEZW-00-0000-0B00T630F  High Brightness LED, XLamp XM-L EasyWhite Series, White, 110 °, 280 lm, 3000 K, 2 A

CREE XMLEZW-00-0000-0B00T630F
Technical Data Sheet (1.49MB) EN Consultaţi toate documentele tehnice

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

Prezentare generală a produselor

The XLamp XM-L EasyWhite series LED eliminates chromaticity binning and enables luminaire and bulb manufacturers to deliver the consistent colour and high efficacy light output of a multi-die LED in the compact XM-L footprint. XLamp XM-L EasyWhite LEDs can reduce LED-to-LED colour variation to within a 2-step MacAdam ellipse, 94% smaller than the total area of the corresponding ANSI C78.377 colour region. The XLamp XM-L EasyWhite LED is the perfect choice for lighting applications where moderate to high luminous flux output is required from a single, small point source. Example applications include, LED retrofit bulbs, commercial/retail display spotlights and other indoor general-illumination applications.
  • Available in 4/2-step EasyWhite bins at 2700/3000/3500/4000/5000K CCT
  • Wide range of operating current, up to 2A @ 6V
  • 85°C Binning and characterization
  • Available in 6 and 12V versions
  • 2.5°C/W Low thermal resistance
  • 115° Wide viewing angle
  • Standard wide variety of CRI choices
  • CRI as well as 80-, 85-, 90-minimum CRI
  • Electrically neutral thermal path
  • Unlimited floor life at <=30°C/85% RH
  • Reflow solderable, JEDEC J-STD-020C
  • REACH compliant
  • UL recognized component (E349212)

INFORMAŢII DESPRE PRODUSE

Product Range:
XLamp XM-L EasyWhite Series
LED Colour:
White
Viewing Angle:
110°
Luminous Flux @ Test:
280lm
CCT:
3000K
Forward Current If Max:
2A
Forward Voltage @ Test:
6.2V
Forward Current @ Test:
700mA
Packaging:
Each
SVHC:
No SVHC (15-Jun-2015)

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Lighting;
  • Commercial

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
China

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85414010
Greutate (kg):
.001
