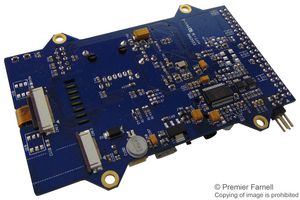

  MM900EV2A  Development Board, Embedded MCU Front Cam, 100MHz CPU, EXT/USB Supply

 MM900EV2A
 MM900EV2A
Technical Data Sheet (3.50MB) EN Consultaţi toate documentele tehnice

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

 MM900EV2A
 MM900EV2A

Prezentare generală a produsului

The MM900EV2A development module provides full hardware feature support for the FT90x MCU. The module also provides a connector for accessing external plug-in hardware over an SPI interface. Targeted applications for the module include home security, HMI and automation systems,USB capability products, embedded multimedia applications and a range of other industrial control systems.
  • Equipped with a front-facing CMOS camera
  • FT90x 100-pin QFN package MCU
  • RJ45 With built in magnetics for 10/100Mbps Ethernet transfer
  • Standard USB-A connector to support USB device connection
  • Micro-B USB for connecting to a USB host or providing a power supply over USB
  • In built audio codec for stereo audio output with 3.5mm headphone jack and mono microphone input
  • Debugger interface for FT90x flash programming and EFUSE configuration
  • +5V Alternative power supply DC connector
  • 2x5-Pins 1.27mm pitch female Micro-MaTch connector for software download
  • 2x20-Pins 2.54mm pitch female header support for external feature expansions
  • 24-Pins 0.5mm pitch camera connector and two RGB LEDs (MM900EV2A/3A modules)
  • MicroSD card socket supporting SD3.0 specification
  • 2x8-Pins 2.54mm pitch dual entry female header and 16 pins 0.5mm pitch FFC/FPC connectors for SPI master to support LCD display modules
Drivers and Software available to download from www.ftdichip.com

Detalii tehnice

Silicon Manufacturer:
FTDI
Core Architecture:
FT32
Core Sub-Architecture:
-
Silicon Core Number:
FT902Q
Silicon Family Name:
FT900
No. of Bits:
32bit
Kit Contents:
Dev Board FT902, Front Facing VGA Camera Module
Product Range:
-
SVHC:
No SVHC (17-Dec-2015)

Găsiţi produse similare  grupate în funcţie de atributele comune

Note

Drivers and Software available to download from www.ftdichip.com

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
Taiwan

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85423190
Greutate (kg):
.5
