ITT CANNON  MDSM-15SC-Z11-VS1  D Sub Connector Housing, MDSM Series, D Sub, D15, Receptacle, 15 Ways, Steel Body

ITT CANNON MDSM-15SC-Z11-VS1
Technical Data Sheet (29.43KB) EN Consultaţi toate documentele tehnice

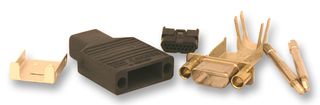

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

Prezentare generală a produsului

The MDSM-15SC-Z11-VS1 is a 15-way jackscrew Cable Connector. MDSM is the commercial industry's smallest D-type connector for shielded I/O wire-to-board applications. Requiring less than 1/3 the area of a traditional D-subminiature connector, MDSM is designed for situations where space and EMI shielding are the primary design drivers. The MDSM's rugged construction and unique contact design combined with a PdNi contact finish provide durability of 10,000 mating cycles.
  • Fully shielded, reduces EMI
  • 1A Current rating
  • 20mR Maximum contact resistance
  • 5000MR Minimum insulation resistance
  • 350V at sea level dielectric withstanding voltage
  • 26 to 30AWG Wire size
  • 1.27mm (0.050") Pitch
  • -55 to 125°C Temperature rating

Detalii tehnice

Product Range:
MDSM Series
Connector Type:
D Sub
Connector Shell Size:
D15
Gender:
Receptacle
No. of Positions:
15Ways
Connector Body Material:
Steel Body
For Use With:
ITT Cannon Micro MDSM Series Crimp Contacts
SVHC:
To Be Advised

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Consumer Electronics;
  • Signal Processing;
  • Portable Devices

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
Germany

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85366990
Greutate (kg):
.0121
