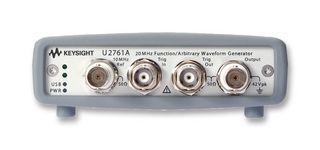

KEYSIGHT TECHNOLOGIES  U2761A  Function Generator, Arbitrary / Direct Digital Synthesis (DDS), 1 Channel, 20 MHz, U2700A Series

KEYSIGHT TECHNOLOGIES U2761A
KEYSIGHT TECHNOLOGIES U2761A
Technical Data Sheet (342.61KB) EN Consultaţi toate documentele tehnice

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

KEYSIGHT TECHNOLOGIES U2761A
KEYSIGHT TECHNOLOGIES U2761A

Prezentare generală a produsului

The Keysight U2761A is a 20 MHz function generator that offers 10 standard waveforms plus pulse and arbitrary waveforms generation capabilities.
  • 20 MHz sine and square waveforms
  • Ramp, triangle and DC waveforms
  • Pulse generation edge
  • 14-bit, 50 MSa/s, 64 Kpoint arbitrary waveforms
  • AM, FM, PM, ASK, FSK, PSK modulation types
  • High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft Windows operating systems)
  • Standalone or modular capabilities
  • Arbitrary waveform (14-bit, 64K points 50MS/s)

Detalii tehnice

Signal Generator Type:
Arbitrary, Direct Digital Synthesis (DDS), Frequency, Signal
No. of Channels:
1 Channel
Product Range:
U2700A Series
Bandwidth:
20MHz
Signal Generator Modulation:
AM, ASK, FM, FSK, PM, PSK
Warranty:
1 Year
Plug Type:
USB
External Width:
117 mm
Supply Voltage Range:
-
Manufacturers Warranty:
1 Year
Safety Category:
IEC61010-1:2001, EN61010-1:20010 (2nd Edition)
Resolution:
4 digits
External Height:
41 mm
Supply Voltage:
12
SVHC:
No SVHC (15-Jun-2015)
External Depth:
180

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Sensing & Instrumentation;
  • Signal Processing;
  • Test & Measurement

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
Malaysia

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Nr. tarif:
85432000
Greutate (kg):
2.05
