NKK SWITCHES  B12JJPCF  Toggle Switch, SPDT, Illuminated, On-On, B - Illuminated Series, Panel

NKK SWITCHES B12JJPCF
Technical Data Sheet (398.32KB) EN Consultaţi toate documentele tehnice

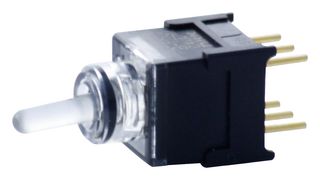

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

Prezentare generală a produsului

The B - Illuminated series sub-miniature fully Illuminated Toggle Switch with process sealed, PCB mount, fully illuminated toggle and bushing. LED provides maximum illumination to bushing and actuator. Actuator status indicator is highly visible in green, red or amber for single colour or red/green for bicolour. Fully sealed body construction prevents contact contamination and allows for time-saving automated soldering and cleaning. Moulded-in epoxy sealed terminals lock out flux and other contaminants. Its STC contact mechanism offers benefits unavailable in conventional mechanisms smoother, positive detent actuation, increased contact stability and unparalleled logic-level reliability.
  • 0.1 x 0.1" Terminal spacing conforms to standard PC board grid spacing

Detalii tehnice

Contact Configuration:
SPDT
Illumination:
Illuminated
Switch Operation:
On-On
Product Range:
B - Illuminated Series
Switch Mounting:
Panel
Contact Current Max:
-
Contact Voltage AC Nom:
28V
Switch Terminals:
Solder
Contact Voltage DC Nom:
28V
SVHC:
No SVHC (17-Dec-2015)

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Industrial

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
China

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85365007
Greutate (kg):
.00099
