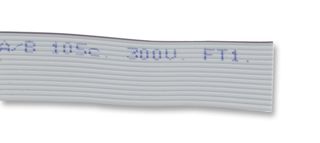

TE CONNECTIVITY  185-10  Ribbon Cable, High Flex Flat, Grey, 10 Core, 28 AWG, 0.093 mm²

TE CONNECTIVITY 185-10
Technical Data Sheet (1.16MB) EN Consultaţi toate documentele tehnice

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

Prezentare generală a produsului

The 185-10 is a 0.5m 10-conductor flat Ribbon Cable with tinned copper conductor of 28AWG wire, blue PVC jacket, 300V rated voltage. This cable is UL2651 and approved by UL94VW-1 compliant.
  • 105°C Operating temperature
  • 96R Impedance
  • 53pF/m at 1MHz capacitance

Detalii tehnice

Jacket Colour:
Grey
No. of Cores:
10Core
Wire Gauge:
28AWG
Conductor Area CSA:
0.093mm²
Reel Length (Imperial):
-
Reel Length (Metric):
-
No. of Max Strands x Strand Size:
19 x 40AWG
Voltage Rating:
300V
Jacket Material:
PVC
Conductor Material:
Tinned Copper
Pitch Spacing:
1.27mm
Ribbon Cable Type:
Flat Ribbon Cable
Cable Width:
12.7mm
Product Range:
-
SVHC:
No SVHC (15-Jun-2015)

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Communications & Networking;
  • Industrial

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
France

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85444995
Greutate (kg):
.020865
