TEXAS INSTRUMENTS  AFE4400SPO2EVM  Evaluation Module Integrated Analog Front End for Heart Rate Monitors & Low Cost Pulse Oximeters

Technical Data Sheet (5.64MB) EN Consultaţi toate documentele tehnice

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.

TEXAS INSTRUMENTS AFE4400SPO2EVM
360°

Prezentare generală a produsului

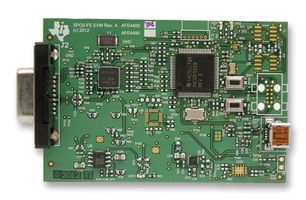

The AFE4400SPO2EVM is intended for evaluating AFE4400. The AFE4400 is a fully integrated AFE ideally suited for Pulse Oximeter applications and consist of low noise receive channel, the LED transmit section and diagnostics for sensor and LED fault detection. The AFE4400 is a very highly configurable timing controller enabling the user to have complete control of the device timing characteristics. The device also has an integrated oscillator working off an external crystal to ease clocking requirements and provide a low jitter clock to the AFE4400. The device communicates to an external host processor using the serial peripheral interface (SPI).
  • DB9 pulse oximeter sensor cable support
  • Two modes of operation: evaluation and live SpO2 / Heart rate
  • Acquire data at up to 1300Hz in evaluation mode
  • USB based power and PC application connectivity
  • Access to all AFE44x0 registers via an easy to use GUI
  • Built in time domain, histogram, FFT and SpO2 / heart rate related analysis on the PC application
  • Live % SpO2 with heart rate calculation
  • USB based firmware upgrade option

Detalii tehnice

Silicon Manufacturer:
Texas Instruments
Silicon Core Number:
AFE4400, AFE4490
Kit Application Type:
Data Converter
Application Sub Type:
Analogue Front End
Kit Contents:
Evaluation Board AFE4400, AFE4490
Product Range:
-
Features:
-
SVHC:
No SVHC (15-Jun-2015)

Găsiţi produse similare  grupate în funcţie de atributele comune

Aplicaţii

  • Medical;
  • Industrial

Legislaţie şi reglementări privind protecţia mediului

Ţara de origine:
United States

Tara in care ultimul proces semnificativ de fabricare a fost efectuat

Conformitate cu RoHS:
Da
Nr. tarif:
85423990
Greutate (kg):
.25
