HFBR-4513Z
Fiber Optic Connector, Vlink, Plastic Optical, 1mm, Plastic Body, HFBR-45XXZ
43.500 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 7,520 lei |
| 10+ | 5,590 lei |
| 25+ | 5,540 lei |
| 50+ | 5,490 lei |
| 100+ | 4,230 lei |
| 500+ | 3,480 lei |
Detalii tehnice
Prezentare generală a produsului

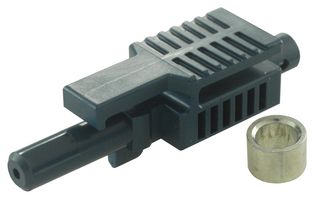

The HFBR-4513Z is a blue Simplex Latching Connector with crimp ring, designed for rugged applications requiring a greater retention force 80N (18lbs) than provided by a simplex non-latching connector. When inserting the simplex latching connector into a module, the connector latch mechanism should be aligned with the top surface of the horizontal modules or with the tall vertical side of the vertical modules. Misalignment of an inserted latching connector into either module will not result in a positive latch. The connector is released by depressing the rear section of the connector lever and then pulling the connector assembly away from the module housing.
- 80N at +25°C Typical connector to versatile link transmitters and receivers retention force
- 22N Typical connector to cable tensile force
- 35N Maximum connector to versatile link transmitters and receivers insertion force
Aplicaţii
Fibre Optics
Specificaţii tehnice
Vlink
1mm
HFBR-45XXZ
Plastic Optical
Plastic Body
Decamethylcyclopentasiloxane (21-Jan-2025)
Documentaţie tehnică (1)
Produse asociate
7 produse găsite
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Philippines
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
