UV Emitter Modules | Farnell România

Găsiți o gamă largă de UV Emitter Modules la Farnell România. Avem în stoc o selecție largă de UV Emitter Modules, inclusiv produse noi și cele mai populare de la cei mai buni producători din lume, inclusiv: Intelligent Led Solutions, Ams Osram Group & Epigap.

Producător

UV Emitter Module Type

Product Range

Peak Wavelength

Typical Wattage

Forward Voltage Range

Minimum Radiometric Power

Radiance Angle

Forward Current per Chip

UV Emitter Module Mounting

UV Emitter Module Leads

Operating Temperature Max

Ambalaj

Niciun filtru aplicat

0 Filtru (filtre) selectat(e)

			Preţ pentru		Cantitate

ILO-LP04-S270-SC201.	3594525 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 270 nm to 290 nm 0.6 W 130° (+/- 65°) Square PCB M3 Heatsink Mount	Each	1+ 308,360 lei 5+ 296,010 lei 10+ 288,590 lei 50+ 281,230 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	0.6W	20V to 34V	4mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	85°C
ILO-LP09-S270-SC201.	3594538 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 270 nm to 290 nm 1.35 W 130° (+/- 65°) Square PCB M3 Heatsink Mount	Each	1+ 524,660 lei	Min.: 1 / Mult.: 1	9 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	1.35W	15V to 25.5V	9mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILR-LO01-S270-LEDIL-SC201.	3594509 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 270 nm to 290 nm 0.15 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ 75,590 lei	Min.: 1 / Mult.: 1	1 Chip UV Module	UV N3535 LEDiL Series	270 to 290nm	0.15W	5V to 8.5V	1mW	± 45° (90°)	30mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	85°C
ILR-LP01-S270-LEDIL-SC201.	3594510 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 270 nm to 290 nm 0.15 W 130° (+/- 65°) Square PCB M3 Heatsink Mount	Each	1+ 85,900 lei 5+ 82,500 lei 10+ 80,420 lei 50+ 78,440 lei 100+ 76,860 lei	Min.: 1 / Mult.: 1	1 Chip UV Module	UV N3535 LEDiL Series	270 to 290nm	0.15W	5V to 8.5V	1mW	± 65° (130°)	30mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	85°C

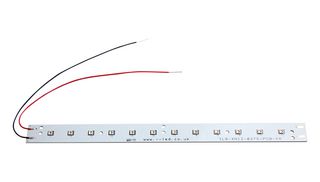

ILS-LO12-S270-0280-SC201-W2.	3594550 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 nm to 290 nm 0.6 W 90° (+/- 45°) Strip PCB M3 Heatsink Mount	Each	1+ 772,520 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 VIOLET Strip LEDiL Series	270 to 290nm	0.6W	20V to 34V	12mW	± 45° (90°)	30mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	85°C
ILO-XO04-S260-SC201.	3594516 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 260 nm to 270 nm 9.1 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ 842,470 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 4 SCOB Series	260 to 270nm	9.1W	20V to 30V	100mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-LN09-S270-SC201.	3594536 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 270 nm to 290 nm 1.35 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ 542,750 lei	Min.: 1 / Mult.: 1	9 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	1.35W	15V to 25.5V	9mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILS-LP12-S270-0280-SC201-W2.	3594551 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 nm to 290 nm 0.6 W 130° (+/- 65°) Strip PCB M3 Heatsink Mount	Each	1+ 746,760 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 VIOLET Strip LEDiL Series	270 to 290nm	0.6W	20V to 34V	12mW	± 65° (130°)	30mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	85°C
ILO-XP09-S300-SC201.	3594535 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 300 nm to 320 nm 20 W 130° (+/- 65°) Square PCB M3 Heatsink Mount	Each	1+ 1.935,780 lei	Min.: 1 / Mult.: 1	9 Chip UV Module	UV N3535 9 SCOB Series	300 to 320nm	20W	15V to 22.5V	540mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XN04-S270-SC201.	3594512 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 270 nm to 290 nm 9.1 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ 842,470 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 4 SCOB Series	270 to 290nm	9.1W	20V to 30V	160mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XP04-S270-SC201.	3594514 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip UVC 270-290 nm 9.1 W 130° (+/- 65°) Square PCB M3 Holes - Heatsink	Each	1+ 842,470 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 SCOB Series	270 to 290nm	9.1W	20V to 30V	160mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILS-XN12-S260-0280-SC201-W2.	3594542 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 to 270 nm 27.3 W 60° (+/- 30°) Rectangular PCB M3 Heatsink Mount	Each	1+ 2.287,930 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	260 to 270nm	27.3W	20V to 30V	300mW	± 30° (60°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILO-LO09-S270-SC201.	3594537 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 270 nm to 290 nm 1.35 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ 542,750 lei	Min.: 1 / Mult.: 1	9 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	1.35W	15V to 25.5V	9mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-LO04-S270-SC201.	3594524 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 270 nm to 290 nm 0.6 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ 218,340 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	0.6W	20V to 34V	4mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	85°C
ILO-XP09-S270-SC201.	3594528 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip UVC 270-290 nm 20 W 130° (+/- 65°) Square PCB M3 Holes - Heatsink	Each	1+ 1.835,100 lei	Min.: 1 / Mult.: 1	9 Chip UV Module	UV N3535 SCOB Series	270 to 290nm	20W	15V to 22.5V	360mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-LN04-S270-SC201.	3594523 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 270 nm to 290 nm 0.6 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ 298,040 lei 5+ 286,260 lei 10+ 278,940 lei 50+ 271,930 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	UV N3535 SCOB LEDiL Series	270 to 290nm	0.6W	20V to 34V	4mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	85°C
ILS-LN12-S270-0280-SC201-W2.	3594549 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 nm to 290 nm 0.6 W 60° (+/- 30°) Strip PCB M3 Heatsink Mount	Each	1+ 772,520 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 VIOLET Strip LEDiL Series	270 to 290nm	0.6W	20V to 34V	12mW	± 30° (60°)	30mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	85°C
ILS-XP12-S300-0280-SC201-W2.	3594548 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 320 to 320 nm 27.3W 130° (+/- 65°) Rectangular PCB M3 Heatsink Mount	Each	1+ 2.499,110 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	300 to 320nm	27.3W	20V to 30V	720mW	± 65° (130°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILS-XO12-S300-0280-SC201-W2.	3594547 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 320 to 320 nm 27.3 W 90° (+/- 45°) Rectangular PCB M3 Heatsink Mount	Each	1+ 2.499,110 lei	Min.: 1 / Mult.: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	300 to 320nm	27.3W	20V to 30V	720mW	± 45° (90°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
LZ4-V0UBH0-00U8	4228204 Data Sheet RoHS Date/Lot Code	AMS OSRAM GROUP UV LED MODULE 1 CHIP 410NM 5.9W	Each	1+ 144,370 lei	Min.: 1 / Mult.: 1	1 Chip UV Module	LuxiGen Series	410nm	-	12.8V to 16.8V	5.9W	120° (±60°)	700mA	Star MCPCB, M3 Holes	-	85°C
LZ4-V0UBH0-00U5	4228203 Data Sheet RoHS Date/Lot Code	AMS OSRAM GROUP UV LED MODULE 1 CHIP 395NM 5.9W	Each	1+ 159,660 lei	Min.: 1 / Mult.: 1	1 Chip UV Module	LuxiGen Series	395nm	-	12.8V to 16.8V	5.9W	120° (±60°)	700mA	Star MCPCB, M3 Holes	-	85°C
ILH-XP01-S365-SC211-WIR200.	3585902 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 365 to 375 nm 110˚ (±55°) 1.05 W 200 mm Red & Black Star PCB	Each	1+ 77,220 lei 5+ 66,800 lei 10+ 65,480 lei 50+ 64,110 lei 100+ 62,790 lei Mai multe preţuri...	Min.: 1 / Mult.: 1	1 Chip UV Module	N3535 PowerStar UV Series	365 to 375nm	1.05W @ 350mA	3.4V to 4.4V	180mW	110° (±55°)	800mA	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	70°C
ILR-OV01-O275-LS010-SC201.	3782403 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Module 1 Chip 275 nm Square PCB M3 - Heatsink Mount 0.6W Push-In Connector	Each	1+ 40,440 lei 5+ 39,370 lei 10+ 38,300 lei 50+ 36,370 lei 100+ 36,120 lei Mai multe preţuri...	Min.: 1 / Mult.: 1	1 Chip UV Module	OSLON UV 3636 1 LEDiL Selector Series	275nm	0.6W	5V to 7V	10mW	± 65° (130°)	200mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
ILH-XT01-S365-SC211-WIR200.	3585907 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 370 nm ±32.5° 9.1 W 200 mm Red & Black Star PCB M3 Holes	Each	1+ 617,070 lei	Min.: 1 / Mult.: 1	4 Chip UV Module	T7070 1 Power Star UV Series	370nm	9.1W	13V to 17V	1.2W	± 32.5° (65°)	700mA	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	70°C
ILR-OV01-O275-LS030-SC201.	3625410 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 500 mA 2 W 130 ° 5 V to 6 V 275 nm Push-In	Each	1+ 251,760 lei 5+ 239,170 lei 10+ 227,180 lei 50+ 222,810 lei	Min.: 1 / Mult.: 1	1 Chip UV Module	OSLON UV 3636 Series	275nm	2W @ 350mA	5V to 6V	30W	130° (±65°)	500mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
