CBC-EVAL-06

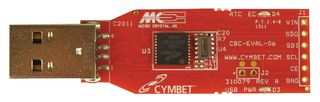

The CBC-EVAL-06 is a demonstration kit for EnerChip CBC3112, a backup power and battery management circuit coupled with the micro crystal low power RV-2123 real time clock (RTC) with integrated crystal. The kit demonstrates just how compact an RTC and backup power solution can be using the low profile surface mount devices from and micro crystal. The combined board space of the two chip solution including RTC, crystal oscillator, rechargeable backup power source, and power management circuits, is only 0.65cm2.

• Solid state rechargeable energy storage in low profile surface mount package, for RTC backup power
• Integrated battery management that controls battery charging and discharge cut off
• Integrated RTC and crystal oscillator in small ceramic surface mount package with SPI bus
• USB connector for easy demonstration on personal computer
• Input/output access to board for easy connection to external microcontroller
• Integrated 12µAh thin film energy storage
• Temperature compensated charge control
• Low standby power
• Adjustable switchover voltage
• Low self discharge

Aplicaţii

Consumer Electronics, Alternative Energy, Wireless, Power Management, Industrial, Test & Measurement, Clock & Timing, Sensing & Instrumentation, Communications & Networking, Metering
