6015-410-001P-KIT

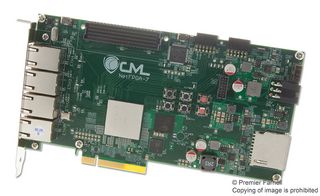

The 6015-410-001P-KIT is a NetFPGA-1G-CML versatile, Network Hardware Development Platform features a Xilinx Kintex®-7 XC7K325T FPGA and includes four Ethernet interfaces capable of negotiating up to 1GB/s connections. 512MB of 800MHz DDR3 can support high-throughput packet buffering while 4.5MB of QDRII+ can maintain low-latency access to high demand data, like routing tables. Rapid boot configuration is supported by a 128MB BPI Flash, which is also available for non-volatile storage applications. The standard PCIe form factor supports high speed x4 Gen 2 interfacing. The FMC carrier connector provides a convenient expansion interface for extending card functionality via Select I/O and GTX serial interfaces. The FMC connector can support SATA-II data rates for network storage applications. The FMC connector can also be used to extend functionality via a wide variety of other cards designed for communication, measurement and control.

• Xilinx Kintex®-7 XC7K325T-1FFG676 FPGA
• Low-jitter 200MHz oscillator
• Four 10/100/1000 Ethernet PHYs with RGMII
• X4 Gen 2 PCI Express
• X16 4.5MB QDRII + static RAM (450MHz)
• X8 512MB DDR3 dynamic RAM (800MHz)
• 1Gb BPI Flash
• SD card slot
• 32-bit PIC microcontroller
• USB microcontroller
• Real-time clock (RTC)
• Crypto-authentication chip
• High pin count FMC connector (VITA 57) with 100 select-IO and 4 GTX serial pair
• Two Pmod™ connectors
• Four on-board LEDs and four onboard general-purpose buttons

Aplicaţii

Embedded Design & Development
