02 02 160 2201
DIN 41612 Connector, har-bus 64, 160 Contacts, Receptacle, 2.54 mm, 5 Row, z + a + b + c + d
600 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 108,710 lei |
| 10+ | 90,270 lei |
| 25+ | 75,950 lei |
| 100+ | 73,300 lei |
| 250+ | 70,660 lei |
Detalii tehnice
Prezentare generală a produsului

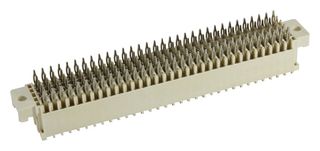

The 02 02 160 2201 is a Harting har-bus® 64 160-position Female DIN 41612 Backplane Signal Connector, with flange, straight orientation, copper alloy contacts with gold over nickel plated and press in termination and length 4.5/5.0mm. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PL 2 according to IEC 61076-4-113 250 mating cycles
- UL94V-0 Flammability rating
Aplicaţii
Industrial
Specificaţii tehnice
har-bus 64
Receptacle
5 Row
Gold Plated Contacts
250
160Contacts
2.54mm
z + a + b + c + d
Copper Alloy
No SVHC (08-Jul-2021)
Documentaţie tehnică (3)
Alternative pentru 02 02 160 2201
1 produs găsit
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Germany
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
