Imprimare pagină
IS.OMB-001

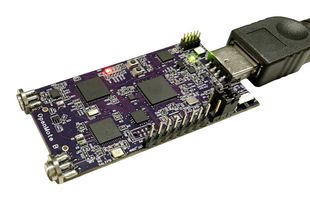

Raspberry Pi Module, OpenMote B, AT86RF215 & CC2538, Arm Cortex-M3
Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
Nu se mai produce
Detalii tehnice
ProducătorINDUSTRIAL SHIELDS
Nr. de reper producătorIS.OMB-001
Cod de comandă3515784
Silicon ManufacturerTexas Instruments
Silicon Family NameCC25xx
Core ArchitectureARM
Core Sub-ArchitectureCortex-M3
Silicon Core NumberAT86RF215, CC2538
Kit ContentsOpenMote B Board AT86RF215 & CC2538
Product Range-
SVHCNo SVHC (16-Jan-2020)
Prezentare generală a produsului
- OpenMote B ultra low power board to develop IoT applications in the industrial space
- Ultimate hardware development and prototyping platform for the Industrial IoT
- Supported by most relevant Open Source 6TiSCG implementation (Contiki NG and OpenWSN projects)
- 2.4GHz SMA and SubGHz SMA antenna (not included)
- Ti CC2538 SoC (512Kb Flash 32Kb RAM), AT86RF215 SubGHz radio (868/915MHz)
- Supports all IEEE802.15.4g modulations, simultaneous dual radio operation
- Programming over BSL
- JTAG and OCD compliant, USB interface
- Temperature, relative humidity sensors, 4x LED indicators, 2xAA battery placeholder
- Simultaneous multi-band operation in the 2.4GHz and 868/915MHz ISM bands
Specificaţii tehnice
Silicon Manufacturer
Texas Instruments
Core Architecture
ARM
Silicon Core Number
AT86RF215, CC2538
Product Range
-
Silicon Family Name
CC25xx
Core Sub-Architecture
Cortex-M3
Kit Contents
OpenMote B Board AT86RF215 & CC2538
SVHC
No SVHC (16-Jan-2020)
Documentaţie tehnică (1)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Spain
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Spain
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85371010
US ECCN:5A992.c
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:No SVHC (16-Jan-2020)
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.035
