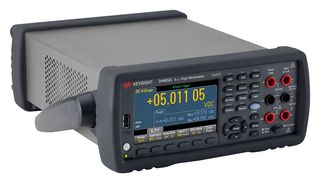

34465A

34465A is a 6 ½ digit Truevolt DMM with Truevolt technology for greater accuracy and quicker measurement insights. It measures AC/DC voltage, current, temperature, frequency, 2- and 4-wire resistance, capacitance, continuity and diode test. The ability to auto-calibrate during the measurement allows the 34465A to maintain a calibrated measurement while the instrument may be going through temperature drift/changes.

• Histogram, bar and trend charts on 4.3" colour graphical display
• Measure with confidence, with 30ppm basic DCV accuracy.
• Test low-power devices with 1µA range and pA resolution
• Flexibly automate measurements over USB or LAN/LXI core interface
• Digitizing and advanced triggering (DIG) now included
• Replacement for models 34410A/34411A
• Bench dimension (W x H x D) is 261.2mm x 103.8mm x 303.2mm
• Rear input terminals

Cuprins

DMM, Standard 3-year warranty (90 days for unserialized accessories), 34138A test lead set with probes, fine tip probes, SMT grabbers and mini grabber attachments, USB Cable, Power Cord, Certificate of Calibration.

Note

A BenchVue software license (BV0001B) is now included with your instrument.
