00357-6

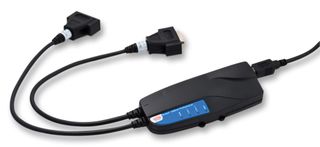

The USBcan professional provides two CAN bus interfaces through a single USB connection. It is a robust, portable device designed for high-end application. With quick reaction times and high data throughput it is perfect for rapid ECU re-flashing, advanced bus analysers and efficient development work. The USBcan professional supports MagiSync technology to synchronise time stamps across multiple units without extra wires providing flexibility for multi-channel application.

• One device for desktop and laptop
• Quick and easy plug-and-play installation
• Supports both 11bit (CAN 2.0A) and 29bit (CAN 2.0B active) identifiers
• Support for Kvaser Linx J1587
• 100% compatible for application written for Leaf, LAP CAN, PCI CAN and PC CAN with KVASER's CANlib
• Two high-speed channels with ISO 11898-2 compliant CAN transceivers, 10 kbit/s up to 1Mbit/s
• Handles up to 40000 messages per second
• Excellent error handling
• Galvanic isolation of the CAN bus driver stage to protect the hardware.
• Interfaces the CAN bus with 9-pin D-SUB connectors or RJ45 connectors

Aplicaţii

Communications & Networking, Multimedia, Portable Devices, Automotive
