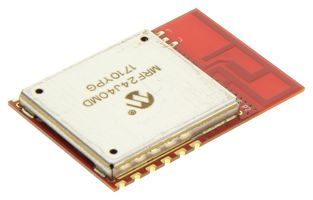

MRF24J40MD-I/RM

The MRF24J40MD-I/RM is a 2.4GHz RF Transceiver Module. IEEE standard 802.15.4™ compliant RF transceiver module intended for longer range applications. The MRF24J40MD-I/RM transceiver module has an integrated PCB antenna, matching circuitry, supports the ZigBee®, MiWi™ and MiWi P2P protocols. The transceiver module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface.

• Supports ZigBee®, MiWi™ and MiWi P2P protocols
• Pin compatible with MRF24J40MB and MRF24J40MC
• Compatible with Microchip microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
• Integrated PCB antenna with simple four-wire SPI interface to PIC® microcontroller
• Surface mountable
• Integrated crystal, internal voltage regulator, matching circuitry, power & low noise amplifier
• Easy integration into final product - Minimize product development, quicker time to market
• Integrated PA/LNA - Tx power +19dBm - Rx sensitivity -104dBm
• Hardware CSMA-CA mechanism, automatic ACK response
• Hardware security engine (AES-128)
• Automatic packet retransmit capable

Aplicaţii

Metering, Wireless, Sensing & Instrumentation, Communications & Networking, Automation & Process Control, Building Automation, Consumer Electronics

Avertismente

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
