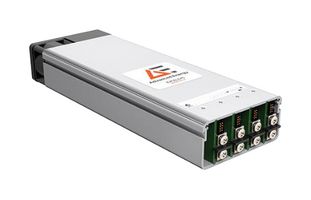

UX4

EXCELSYS UltiMod series is unique in flexibility, unrivalled in performance power supply. This new paradigm, combining technical excellence with logistics simplicity to exceed the most demanding requirements from any industry. The UltiMod range of power supply offers unrivaled performance and demonstrates our global leadership in product reliability, efficiency and cost competitiveness. The UX4 delivers up to 600W and can be populated with up to four powerMods. Application includes clinical diagnostic and dialysis equipment, medical lasers, radiological imaging, clinical chemistry (medical), test and measurement, industrial machines, automation and audio equipment, printing, and telecommunications (industrial). It is certified by UL/EN60601-1 3rd edition, UL/EN60601-1-2 4th edition (EMC) (medical), UL/EN60950 2nd edition, IEC62368-1 2nd edition (industrial) certifications.

• User and field configurable
• Lowest acoustic noise, -40°C start-up temperature
• No minimum load, extra-low profile <lt/> 1U height
• All outputs fully floating
• 5V isolated standby voltage
• Active PFC (Power Factor Correction)
• Nominal efficiency is 90% (230VAC, 1200W at 24V)
• Isolation voltage is 4000VAC (input to output)

Avertismente

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
