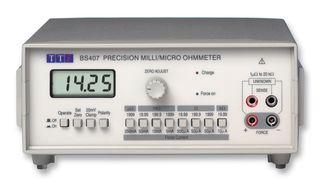

BS407

The BS407 is an instrument which is fully optimised for the task of accurate measurement of low resistances with a best resolution of 1µΩ. Most multimeters offer a best resolution which is at least one thousand poorer than this. A very high resolution multimeter may attempt to resolve fairly low resistances, but it does so by resolving extremely low voltages (typically one nano-volt per micro-ohm), making it subject to severe errors from thermal emf effects and noise. In contrast, the BS407 generates sufficient test voltage across the unknown resistance to combat noise and reduce thermal emf effects to manageable levels. Current reversal can then be used to eliminate any remaining thermal offset.

• High basic accuracy of 0.1%
• Wide measurement range of 1µΩ to 20kΩ
• Current reversal switch for detecting thermal EMF effects
• Current diversion switch for easy zero setting
• Four terminal measurement using Kelvin clip leads
• Battery operation with built-in charger
• Switchable 20mV clamp for 'dry circuit' testing

Aplicaţii

Sensing & Instrumentation, Signal Processing, Test & Measurement

Cuprins

Kelvin Test Clip Leads, Operating Manual & IEC Mains Lead.

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
