8-338069-0

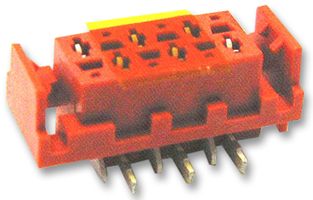

PCB Receptacle, Board-to-Board, 1.27 mm, 1 Rows, 10 Contacts, Surface Mount, Micro-MaTch
Aveți nevoie de mai mult?
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 14,380 lei |
| 22+ | 10,820 lei |
| 67+ | 10,720 lei |
| 180+ | 8,840 lei |
| 450+ | 8,690 lei |
Detalii tehnice
Prezentare generală a produsului
The 8-338069-0 is a 10-way 1-row Female-on-board Ribbon Cable Receptacle with tin over nickel plated copper alloy contacts and tin over nickel plated solder tail. This Micro-MaTch series connector comes with red PA housing and surface mount termination. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
- UL94V-0 Flammability rating
- 1.4A Current rating
- 1000MΩ Insulation resistance
- 100VAC Voltage rating
- -40 to +105°C Operating temperature range
Aplicaţii
Industrial
Specificaţii tehnice
Board-to-Board
1Rows
Surface Mount Straight
Micro-MaTch
Tin Plated Contacts
1.27mm
10Contacts
Surface Mount
Phosphor Bronze
No SVHC (21-Jan-2025)
Produse asociate
2 produse găsite
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Germany
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
