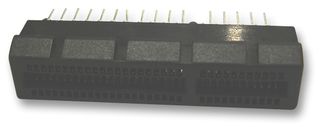

10018783-11111TLF
Card Edge Connector, PCI, Dual Side, 1.57 mm, 64 Contacts, Through Hole Mount, Straight
287 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 7,980 lei |
| 10+ | 6,960 lei |
| 100+ | 6,100 lei |
| 500+ | 5,230 lei |
| 1000+ | 4,360 lei |
| 2500+ | 3,490 lei |
Detalii tehnice
Prezentare generală a produsului
The 10018783-11111TLF is a 64-way 2-row PCI Express Card Edge Female Connector, 2mm row pitch and solder termination. Copper alloy contacts with gold over nickel finish. This 1.0mm pitch, vertical card edge connector is used to implement PCI Express® architecture in desktop PCs, workstations and servers. The base connector family offers one to 16 high-speed serial PCI Express Lanes. Each serial lane supports 2.5Gbps (per direction) in a 100Ω Gen1 system or 5.0Gbps in a Gen2 system with an 85Ω differential environment. Base connector range offers 1, 4, 8 or 16 serial PCI Express links to scale to different bandwidth requirements.
- High-temperature thermoplastic (UL94V-0) for reflow or thermoplastic (UL94V-0) for wave soldering
Aplicaţii
Computers & Computer Peripherals, Industrial
Specificaţii tehnice
Dual Side
1mm
Through Hole Mount
2Rows
Copper Alloy
Nylon (Polyamide) Body
No SVHC (21-Jan-2025)
1.57mm
64 Contacts
Straight
Solder
15µ" Gold Plated Contacts
FCI 10018783
Documentaţie tehnică (4)
Alternative pentru 10018783-11111TLF
1 produs găsit
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
