RJF5442200
Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5e, Panel Mount
Anunțați-mă când există în stoc
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 165,050 lei |
| 10+ | 145,750 lei |
| 25+ | 135,230 lei |
| 100+ | 124,660 lei |
| 250+ | 116,890 lei |
| 500+ | 114,550 lei |
Detalii tehnice
Prezentare generală a produsului

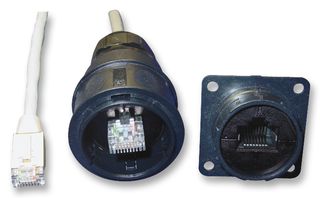

The RJF5442200 is an Ethernet Connection System with composite square flange receptacle shell and RJ45 cordset, 8 tinned holes at the rear of the PCB to solder the cable. RJF544 allows to use an Ethernet Class D/Cat 5e connection for 10 BaseT, 100 Base TX or 1000 BaseT networks in harsh environments. With the patented RJStopR system can use a standard RJ45 cordset in a protective composite plug which will protect it from shocks, dust and fluids. No hazardous on-field cabling and grounding.
- Shock, vibration and traction-resistant
- No cabling operation in field and no tools required
- Sealed against fluids and dust (IP68)
- Quick push pull coupling
- RJ45 cordset retention in the plug of 100N in the axis
- Improved EMI protection
- Compliant with IEC 60603-7 variant 12
Aplicaţii
Communications & Networking, Automation & Process Control, Robotics, Industrial
Specificaţii tehnice
RJ45 Jack
8P8C
-
Vertical
Without Magnetics
Without Light Pipe
1 x 1 (Port)
Cat5e
Panel Mount
Unshielded
Without LED
RJF 544
Documentaţie tehnică (1)
Produse asociate
1 produs găsit
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:United States
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
