RX FM8SF
RF MODULE, RECEIVER, FM, 868.30MHZ

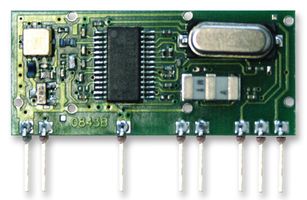

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
Nu mai este în stoc
Detalii tehnice
ProducătorAUREL
Nr. de reper producătorRX FM8SF
Cod de comandă1699485
Fişă tehnică
RF ModulationFM
Data Rate Max-
Frequency868.3MHz
Sensitivity dBm-111dBm
Supply Voltage Min4.5V
Supply Voltage Max5.5V
Supply Current7mA
Supported Devices - RF Receivers-
RF Receiver Applications-
Product Range-
SVHCNo SVHC (17-Dec-2014)
Prezentare generală a produsului
RX-FM4SF is a super-heterodyne FM receiver with high sensitivity and selectivity. It is equipped by front-end SAW filter that allows an high noise immunity. Enable pin allows to reach power down mode without signal and reduce consumption up to 0.5µA . It is ideal for Microchip Keeloq encoders. It is used in association with TX 869 BOOST transmitter obtains a complete system with an high budget link and useful to take advantage of the best transmitter technical features.
- Front-end SAW filtered to an higher electromagnetic immunity
- High sensitivity and sensibility super-heterodyne FM receiver
- Ideal for Microchip Keeloq encoders
- Enable pin allows to reach power-down mode without signal and reduce consumption up to 0.5 µA
- Low cost FM receiver
Aplicaţii
Communications & Networking, Wireless, Security
Specificaţii tehnice
RF Modulation
FM
Frequency
868.3MHz
Supply Voltage Min
4.5V
Supply Current
7mA
RF Receiver Applications
-
SVHC
No SVHC (17-Dec-2014)
Data Rate Max
-
Sensitivity dBm
-111dBm
Supply Voltage Max
5.5V
Supported Devices - RF Receivers
-
Product Range
-
Documentaţie tehnică (1)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Italy
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Italy
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85389091
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:În aşteptare
SVHC:No SVHC (17-Dec-2014)
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.005
