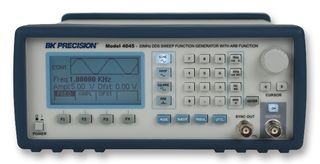

BK4045

The 4045B is a versatile 20 MHz DDS sweep function generator with arbitrary waveform capabilities. The instrument generates sine and square waveforms up to 20 MHz, triangle/ramp waveforms up to 2 MHz, and arbitrary waveforms (12-bit, 50 MSa/s, 1k point) with high signal precision and stability. Providing variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), the 4045B also offers linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

• Sine, square, triangle, and arbitrary waveform generation
• Bright colour LCD display with waveform preview
• Linear and logarithmic sweep
• AM/FM modulation
• Adjustable duty cycle
• Independent DC offset amplifier design allows large offsets on small amplitude waveforms
• Low-jitter square wave generation
• Store and recall instrument settings
• Output On/Off button
• Internal/external triggering
• Gate and burst mode
• Built-in counter
• USB interface with SCPI-compliant command set
• Short circuit and overvoltage protection on all inputs and outputs

Aplicaţii

Sensing & Instrumentation, Signal Processing, Test & Measurement

Cuprins

Instruction manual on CD, power cord, USB (type A to B) interface cable & certificate of calibration.
