83265 009100.

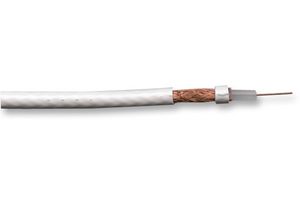

The 83265-100-9 is a 100ft RG178B high temperature Coaxial Cable with 30AWG stranded (7 x 38) silver-plated copper-covered steel conductor, TFE PTFE insulation, silver-plated copper braid shield (95% coverage) and white FEP jacket. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.

• CPR: Not Yet Qualified
• 50Ω Impedance
• 29pF/ft Conductor to shield nominal capacitance
• 69.5% Nominal velocity of propagation
• 244Ω/1000ft at 20°C Nominal conductor DC resistance
• 14.6Ω/1000ft at 20°C Nominal outer shield DC resistance

Aplicaţii

Communications & Networking
