28501

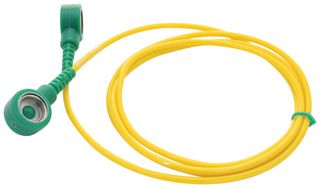

ESD Grounding Cord, Yellow/Green, 180mm, 1Mohm
Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
Nu se mai produce
Detalii tehnice
ProducătorDESCO EUROPE / VERMASON
Nr. de reper producător28501
Cod de comandă2062038
Fişă tehnică
Lead Length180mm
Ground Cord ColourYellow
Ground TerminalsSnap
End To Ground Resistance1Mohm
Product Range-
SVHCTo Be Advised
Prezentare generală a produsului
The 28501 is a 180mm Grounding Connection Cord with polyurethane insulation and Ø2.5mm 7 tinsel wires conductor. The body housing shall contain a 10mm female snap with 1MΩ resistor, joined in series to the conductor with another 10mm female snap on the other end without resistor. The ground end of the cord is moulded with single nylon material (strain relief/body housing). The cord conductor shall have an end to end resistance not greater than 50Ω resistivity and 2mΩ ±20% current limiting resistance.
- Moulded ends and chips in PMS340 green colour
- Exceeds 20000 cycles of bending life test without any physical damage on the strain relief
- 1 to 5lbs Pull away force is required to disconnect the snap in a normal disconnect direction
Aplicaţii
Safety
Specificaţii tehnice
Lead Length
180mm
Ground Terminals
Snap
Product Range
-
Ground Cord Colour
Yellow
End To Ground Resistance
1Mohm
SVHC
To Be Advised
Documentaţie tehnică (1)
Produse asociate
3 produse găsite
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85444290
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:To Be Advised
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.011793
