6069-410-028

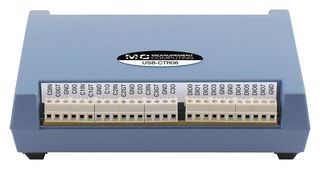

USB-CTR08 is a high-speed counter/timer device with eight counter I/O, 48MHz input frequency, up to 64-bit resolution, up to 8 MB/s scan rates, multiple counter modes, four pulse-width modulation (PWM) timers, and eight digital I/O. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™. An OEM, board-only version of the USB-CTR08 with header connectors instead of screw terminals is available and can be ordered directly from MCC.

• Supports totalize, period, pulse width, and timing counter input modes
• Four independent pulse-width modulation (PWM) timers
• Eight bit-configurable digital I/O channels
• Synchronous high-speed reads of digital and counter inputs
• High-speed pulse counter for general counting applications

Cuprins

USB-CTR08, USB cable, Printed insert: DAQami quick start, MCC packaging assembly/foam.

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
