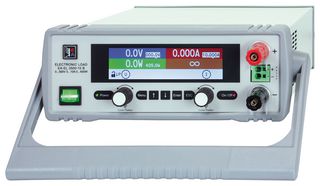

EA-EL 3080-60 B

EA-EL 3000B series is a bench tool for low-power load testing of DC sources, batteries, and electronics components with a power rating of 400W, providing for accurate and reproducible test data. Basic control software “EA Power Control” is included. It provides for a highly stable and dynamic DC loading in CV, CC, CP and CR mode with very fine adjustment.

• Input power rating: 0...400W
• Input voltages: 0...80V up to 0...500V
• Input currents: 0...10A up to 0...60A
• Multilingual colour display
• User profiles, true function generator
• Adjustable protections: OVP, OCP, OPP
• Operation modes: CV, CC, CP, CR
• Carrying handle with tilt stand
• SCPI and ModBus RTU supported
• Control software (Windows)
• LabView VIs
• Optional: USB, Ethernet or analogue

Aplicaţii

Automotive

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
