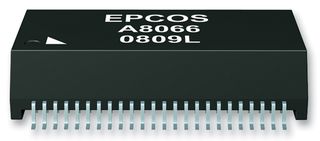

B78476A8247A003
Ethernet & LAN Transformer, 10/100 Base-T, 1 Port, 1CT:1CT, 350 µH, 1.5 kV, Surface Mount
2.000 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 14,880 lei |
| 10+ | 11,990 lei |
| 25+ | 11,430 lei |
| 100+ | 10,870 lei |
| 250+ | 9,400 lei |
| 500+ | 7,870 lei |
Detalii tehnice
Prezentare generală a produsului
The B78476A8247A003 is a 350µH 1-port 10/100 base-T magnetic LAN Module with ferrite toroid, case and potting construction as per UL94V-0 standards. This magnetic modules pulse transformer provide minimum 1500V dielectric isolation combined with excellent insertion and return loss as well as crosstalk and differential to common-mode rejection. EPCOS Magnetics module support not only the standard temperature range from 0 to +70°C, they are also available with an extended temperature range from -40 to +85°C for industrial applications. This Power over Ethernet technology module is optimized for use in local area networks, hubs, switches and routers but also for use in PCs and modems and is approver by IPC/JEDEC, J-STD-020C and IEEE 802.3 standards.
- MSL-2 Moisture sensitivity level
Aplicaţii
Communications & Networking
Specificaţii tehnice
10/100 Base-T
1 Port
350µH
Surface Mount
85°C
No SVHC (21-Jan-2025)
10/100 Base-T
1CT:1CT
1.5kV
-40°C
B78476 Series
Documentaţie tehnică (2)
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
