2773021447

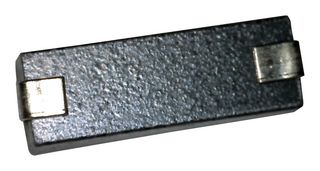

Ferrite Bead, 5 A, 78 ohm
1.200 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 5+ | 1,600 lei |
| 50+ | 1,030 lei |
| 250+ | 0,890 lei |
| 500+ | 0,840 lei |
| 1000+ | 0,800 lei |
| 2800+ | 0,760 lei |
Detalii tehnice
Prezentare generală a produsului
The 2773021447 is a SM Bead with 73-grade material, differential-mode. The copper conductors have a lead-free tin coating. Rugged construction lowers the DC resistance and increases current carrying capacity compared to plated beads. Wires are oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. SM bead meets the solderability specifications when tested in accordance with MIL-STD-202, method 208. After dipping the mounting site of the bead, the solder surface shall be at least 95% covered with a smooth solder coating. The edges of the copper strip are not specified as solderable surfaces.
- Supports lower frequencies (<lt/>50MHz)
- -55 to 125°C Operating temperature
Aplicaţii
Industrial
Specificaţii tehnice
-
5A
78ohm
9.6mm
2.85mm
-55°C
-
-
-
-
3.05mm
SMD
125°C
No SVHC (21-Jan-2025)
Documentaţie tehnică (4)
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
