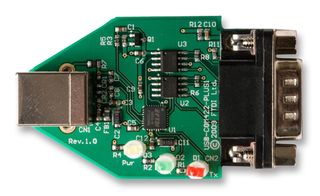

USB-COM422-PLUS1

The USB-COM422-PLUS1 module is a single channel USB to RS422 converter module. The USB-COM422-PLUS1 is based on the FTDI FT232R and includes level shifters to support full RS422 signalling plus Power/TXD/RXD LEDs to provide a visual indication of data traffic through the module. The module uses a standard USB-B device connector for connection to an upstream host or hub port. RS422-level signals, including modem handshake signals, are available on an industry-standard DE-9P connector. The maximum RS422-level data rate is 3Mbps. The USB-COM422-Plus1 module requires USB device drivers, which are used to make the USB-COM422-Plus1 appear as a Virtual COM Port (VCP). This allows existing serial communications software such as HyperTerminal to exchange data through the USB-COM422-Plus1 to a legacy RS422 peripheral device.

• Adds one RS-422 serial port by connecting to USB
• Easy plug & play installation and RS-422 device connection
• Works with USB 1.1 & 2.0 Host and Hub ports
• Industry standard FTDI chip set & device drivers for maximum compatibility
• Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
• Installs as a standard Windows COM port
• Installs as a standard Windows COM port
• FIFO with 128 byte transmit buffer, 256 byte receive buffer
• RS-422 data signals: TxD+,TxD-,RxD+,RxD-,RTS+,RTS-,CTS+,CTS-,GND. Serial port speed up to 3Mbps
• Powered by USB port. No external power adapter required

Aplicaţii

Communications & Networking, Wireless, Portable Devices, Medical, Security, Audio, Industrial, Consumer Electronics, Sensing & Instrumentation, Imaging, Video & Vision
