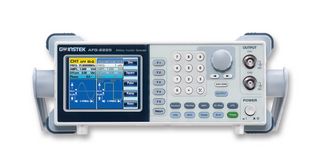

AFG-2225

The AFG-2225 is a 2-channel 25MHz True Arbitrary Function Generator provides superior features in its class. Both channels are equipped with same characteristics to fit dual-signal applications such as differential or IQ signaling. The outstanding cost-performance value makes the AFG-2225 a practical instrument to accelerate the development process. The major features for both channels include 10Vpp output amplitude, 25MHz frequency bandwidth with 1uHz resolution, built-in waveforms of sine, square, ramp (triangle) and noise. As to the 1 to 99% adjustable duty cycle of square waveform can be used as pulse signal sources. For the arbitrary waveform, user can edit the 66 built-in waveforms or create a whole new one. Moreover, AFG-2225 carries features of AM/FM/PM/FSK/SUM modulation, sweep, burst and frequency counter, which can be applied to various communication fields.

• Wide frequency range from 1µHz to 25MHz (sine/square wave)
• 1µHz Resolution in full range
• Built-in standard 120MSa/s, 10-bit, 4k points arbitrary waveform for both channels
• True dual-channel output, CH2 provides the same characteristics as CH1
• Couple, tracking, phase operations of dual channel are supported
• 1 to 99% Adjustable duty cycle for square waveform
• High resolution and colored TFT LCD with friendly user interface
• Multiple editing methods to edit arbitrary waveform easily
• Built-in standard AM/FM/PM/FSK/SUM/sweep/burst and frequency counter
• USB host/device interface for remote control and waveform editing
• Offers multiple standard waveforms
• Full-functions equipped dual-channel signal output capability
• Correlated functions of dual-channel outputs
• High-flexibility of arbitrary waveforms editing
• Friendly operating interfaces and instant parameter display
• 66 built-in arbitrary waveforms
• Supports multi-change signal application
• Impedance switch function
• Provides USB host/device interface

Aplicaţii

Test & Measurement

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
