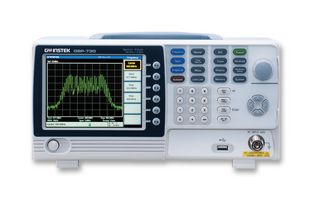

GSP-730

GW Instek GSP-730 is a 3 GHz Spectrum Analyzer mainly developed to fulfill the demands of RF Communication educations. Budget constraint and insufficient teaching tools are normally the two hurdles for schools to provide high-quality courses for RF communication experiments. A moderate spectrum analyzer, GSP-730, featuring full functions should provide, along with GRF-1300 training kit possesses a unique position in the field as an economic turn-key solution for 3GHz RF Communication Experiment courses.

• Frequency Range : 150kHz ~ 3GHz
• Autoset Function
• Noise Floor: ≦-100dBm
• RBW Range : 30kHz, 100kHz, 300kHz, 1MHz
• ACPR/CHPW/OCBW Measurement
• 3 Traces in Different Colors
• Split Window Function
• Limit Line Function
• Remote Control Software
• Presentation Material for Training Courses
• Support Interface : USB Device/Host, RS-232C
• 5.6” TFT LCD with VGA Output

Aplicaţii

Sensing & Instrumentation, Signal Processing, Test & Measurement

Cuprins

Quick Start manual x 1, User Manual CD x 1 & Power Cord x 1.

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
