IM3590

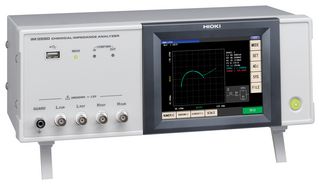

IM3590 is a chemical impedance analyser for R&D applications of electrochemical components and materials, batteries, and EDLCs. It is an impedance measuring instrument which achieves high speed and high accuracy. The IM3590 combines the functionality of two devices: an impedance analyser that can perform frequency and measurement signal sweep measurement, and an LCR meter that can simultaneously display up to four parameters under a single set of measurement conditions. Due to the ability to set a broad range of measurement conditions, including measurement frequencies from 1mHz to 200KHz and measurement signal levels from 5mV to 5V, and built-in equivalent circuit models for electrochemical components, the instrument can be used in a broad range of applications such as electrochemical impedance measurement.

• Measurement range from 100mohm to 100Mohm, 10 ranges
• 5.7" colour TFT, display can be set to ON/OFF
• 2ms measurement time
• DC bias measurement, DC resistance temperature compensation, Temperature measurement
• Battery measurement, comparator, BIN measurement, panel loading/saving, memory function
• EXT I/O (handler), USB communication (high-speed), USB memory interface
• Power supply range from 100 to 240VAC, 50/60Hz, 50VA maximum
• Dimension is 330mm W x 119mm H x 168mm D

Cuprins

Chemical impedance analyser, Power cord x 1, Instruction manual x 1, CD-R (Communication instruction manual and sample software [communications control, accuracy calculation and screen capture functionality] ) x 1.

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
