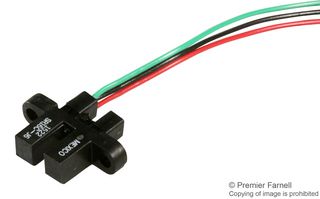

SR16C-J6

The SR16C-J6 is a hall effect digital Vane Sensor, designed for position and speed sensing. The SR16C-J6 sensor is tailored for fitness and information technology applications. They are well suited for use in moderate electrical, chemical and mechanical environments. The SR16C-J6 sensor contains an internal magnet and Hall effect sensor mounted in a twin tower configuration. The hall effect sensor provides highly accurate and repeatable performance in environments in which dirt, dust or stray IR light might affect the performance of optical solutions.

• Operated by a ferrous vane interrupter for pulse counting or position sensing
• Medium level magnetic switching to reduce stray field interference
• No mechanical contacts, eliminates product wear
• Noncontact position sensing
• 300.7mm (11.8") lead wires termination type
• -20 to 85°C operating temperature
• 10mA (maximum at 25°C) supply current
• 20mA maximum output current
• 10µA leakage current

Aplicaţii

Logistics, Industrial

Avertismente

Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
