FP40R12KE3BOSA1
IGBT Module, PIM Three Phase Input Rectifier, 55 A, 2.3 V, 200 W, 125 °C, EconoPIM

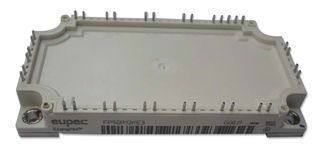

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
ProducătorINFINEON
Nr. de reper producătorFP40R12KE3BOSA1
Cod de comandă1496944
Gamă de produseEconoPIM 2
Cunoscut şi sub denumirea deFP40R12KE3, SP000083565
Nu se mai produce
Detalii tehnice
ProducătorINFINEON
Nr. de reper producătorFP40R12KE3BOSA1
Cod de comandă1496944
Gamă de produseEconoPIM 2
Cunoscut şi sub denumirea deFP40R12KE3, SP000083565
Transistor PolarityN Channel
IGBT ConfigurationPIM Three Phase Input Rectifier
Continuous Collector Current55A
DC Collector Current55A
Collector Emitter Saturation Voltage Vce(on)2.3V
Collector Emitter Saturation Voltage2.3V
Power Dissipation200W
Power Dissipation Pd200W
Operating Temperature Max125°C
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature Tj Max125°C
Transistor Case StyleEconoPIM
No. of Pins24Pins
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPIM 2
SVHCNo SVHC (17-Jan-2023)
