2000-SCAN..

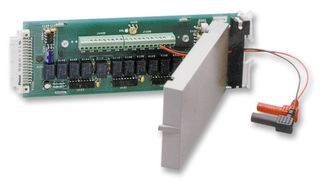

The 2000-SCAN from Keithley is a 10 channel, general purpose scanner card. This scanner card designed to be installed in the model 2000 multimeter, model 2001 multimeter and model 2002 multimeter.

• Ten channels of 2 pole relay input
• Channels configurable for 4-pole operation
• Multiplex one of ten 2 pole or one of five 4 pole channels into a model 2000/2001/2002 multimeter
• Dimension is 21mm high x 72mm wide x 221mm and weight is 0.4g
• Maximum voltage between any two terminals is 200V peak
• Common mode voltage is 350V peak between any terminal and earth
• Actuation time is 2.5ms maximum on/off
• 110VDC, 1A switched, 30VA maximum (resistive load) DC signal
• 125VAC rms or 175VAC peak, 100KHz maximum, 1A switched, 62.5VA maximum (resistive load) AC signal

Cuprins

Model 2000-SCAN scanner card, Instruction manual, CA-109 test lead set for output connections (two red, two black).
