00331-6

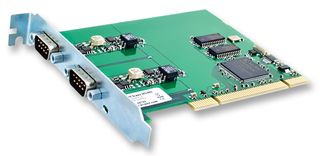

The 00331-6 PCIcanx is a high speed CAN interface for the PCI-X and PCI bus. The PCIcanx boards fits in both PCI-X and PCI bus systems. PCIcanx product family is a family of CAN/PCI interface boards and comprises three members (PCIcanx 4xHS, PCIcanx HS/HS and PCIcanx HS). Galvanically isolated CAN bus drivers to protect the hardware. It features Galvanic Isolation for protection against voltage spikes.

• Compliant with PCI 2.3
• The board fits in both 3.3V PCI-X and 3.3V and 5V PCI busses
• Galvanic isolation between the CAN controller and the CAN driver
• Quick and easy plug and play installation
• SJA1000 CAN controllers from Philips, with 64byte receive FIFO
• Supports CAN 2.0 A and 2.0 B (active)
• High speed ISO 11898 compliant driver circuits
• Interfaces the CAN bus with DSUB CAN connectors
• Pin assignment according to CiA-DS102
• 16MHz CAN oscillator frequency

Aplicaţii

Automotive, Industrial, Medical, Communications & Networking
