453-00011-K1

Development kit for 453-00011 Pinnacle™ 100 modem with external antenna. Pinnacle™ 100 modem seamlessly incorporates a powerful Cortex M4F controller, full Bluetooth v5 and LTE CAT M1/NB-IoT capabilities all with full regulatory certifications and LTE carrier approvals. This innovative modem family also offers complete antenna flexibility on-device, off board as well as external antennas to give design flexibility, reduce complexity and simplify overall product solution. Extremely power conscious, the Pinnacle™ 100 is ideal for battery-powered devices operating at the edge of your IoT networks, seamlessly bridging the cellular WAN to the BLE network. It’s never been easier to bridge wireless Bluetooth 5 sensor data to cloud services like AWS IoT over a low-power LTE connection. Application include cellular IoT, connected medical, environmental monitoring, predictive maintenance and retail/commercial.

• LTE CAT M1 / NB-IoT radio via Sierra HL7800
• On-board Cortex-M4F microcontroller, 32bit at 64MHz, 256KB of RAM, 1MB internal flash, 8MB QSPI
• Industrial operating temperature range from -40° to +85° C
• Flexible programming
• Secure firmware upgrade, comes pre-programmed with Laird’s secure bootloader
• Programmable BLE Tx power +8dBm to -20dBm, -40dBm
• BLE Rx sensitivity of -91dBm (1Mbps), - 100dBm (125Kbps)

Cuprins

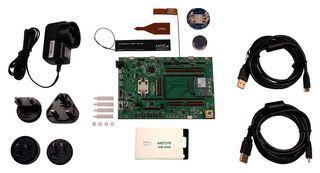

Development board, BLE sensor board, Cables, Batteries, Antennas, SIM cards pre-paid data and Cloud demo on AWS.
