19002-0001

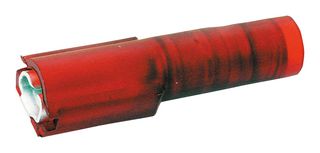

Quick Disconnect Terminal, Avikrimp 19002, Female Quick Disconnect, 6.35mm x 0.81mm
Aveți nevoie de mai mult?
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 1,950 lei |
| 10+ | 1,850 lei |
| 50+ | 1,700 lei |
| 100+ | 1,510 lei |
| 500+ | 1,480 lei |
| 1000+ | 1,450 lei |
Detalii tehnice
Prezentare generală a produsului
The 19002-0001 is an Avikrimp™ female quick disconnect made of brass with tin plated finish for 22 to 18AWG wire. This 190002 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements. Avikrimp™ fully insulated quick disconnects is the premium quick-disconnect terminal option. These QDs are made of a Krimptite™ terminal with a brass sleeve on the barrel and completely insulated with moulded nylon housing, providing all the benefits of an AviKrimp QD, with full insulation.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Ensures optimum safety from electric shock
- UL94V-2 flammability rating
- Maximum voltage is 300V
- Operating temperature range from -65 to 105°C
Aplicaţii
Automotive, Consumer Electronics, Industrial
Specificaţii tehnice
Avikrimp 19002
6.35mm x 0.81mm
22AWG
Red
Nylon (Polyamide)
No SVHC (21-Jan-2025)
Female Quick Disconnect
0.25" x 0.032"
18AWG
-
Brass
Alternative pentru 19002-0001
8 produse găsite
Produse asociate
1 produs găsit
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:United States
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
