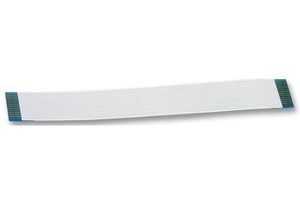

98266-0172

The 98266-0172 is a 0.152m 16-way Premo-Flex™ FFC Jumper Cable with FFC type D to FFC type D connectors and 0.50mm pitch, termination interface. The 98266 series jumper cable can be used with Molex FFC-FPC connector. The flat flex cable (FFC) jumper offers standard lengths, pitches and circuit sizes to accommodate a wide range of flexible interconnect requirements between two PC boards. The flat flex jumper is terminated to zero insertion force (ZIF), non-ZIF or low insertion force (LIF) FFC connectors. Premo-Flex standard flat flex jumper is now available in extra flexible 0.12mm cable, ideal for complex board-to-board interconnections in confined spaces. Molex offers an extensive range of FFC connectors and is able to design customized FFC connectors to customer requirements. Contact layout allows for mirrored contacts in top- and bottom-mount ZIF applications.

• Rugged and reliable
• Durable and extra flexible PCB-connection solution
• Flat flexible cable (FFC) jumper - Standard product
• Mirrors signal layout between PCBs
• Simple assembly process
• Achieves tight tolerances required for reliable connections
• Polyimide substrate insulation
• Withstands high-temperature insulation material
• Round flat cable design
• Delivers superior signal integrity and high resistance to vibration and bending
• Ideal for rugged applications with space limitations

Aplicaţii

Aerospace, Defence, Military, Automotive, Commercial, Consumer Electronics, Computers & Computer Peripherals, Industrial, Medical
