MP-HS-2210M-4-0300

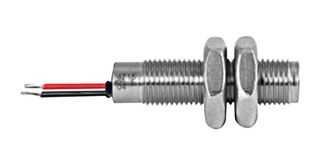

MP-HS-2210M-4-0300 is a 2-wire, M10 threaded, latching, hall sensor. Hall sensors are ideal for high-frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.

• Compact size, various switching sensitivities
• Supply voltage range from 3 to 24V
• Low supply current range from 5 to 7V (TJ=25°C and VSUP= 12V)
• 1μs output fall time and rise time max (TJ=25°C, VSUP=12V)
• Delay time is 16μs typ (TJ=25°C), output refresh period range from 1.6 to 2.66μs (VSUP=12V, TJ=25°C)
• Nickel plated brass housing, UL1007/1569, AWG 24 cable
• Epoxy potting compound
• Operating temperature range from -20°C to + 85°C

Aplicaţii

Industrial, Automation & Process Control, Automotive, Installations

Cuprins

x1 Hall effect proximity sensor.

Note

Versatile and cost-effective solution for a variety of applications.
