MYTNC1R84RELA2RAD
DC-DC Switching Synchronous Buck Regulator, Adjustable, 6 V to 14.4 V in, 0.7 V-1.8 V/4A out, LGA-48

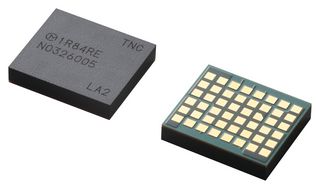

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
ProducătorMURATA POWER SOLUTIONS
Nr. de reper producătorMYTNC1R84RELA2RAD
Cod de comandă3650016
Gamă de produseMYTNC Series
Fişă tehnică
Detalii tehnice
ProducătorMURATA POWER SOLUTIONS
Nr. de reper producătorMYTNC1R84RELA2RAD
Cod de comandă3650016
Gamă de produseMYTNC Series
Fişă tehnică
Output TypeAdjustable
No. of Outputs1Outputs
TopologySynchronous Buck (Step Down)
Input Voltage Min6V
Input Voltage Max14.4V
Max Output Current4A
Output Current4A
IC Case / PackageLGA
No. of Pins48Pins
IC MountingSurface Mount
Output Voltage - Nom-
Output Voltage Min700mV
Output Voltage Max1.8V
Switching Frequency Typ1MHz
Efficiency90.5%
Operating Temperature Min-40°C
Operating Temperature Max105°C
Product RangeMYTNC Series
Qualification-
MSL-
SVHCNo SVHC (07-Nov-2024)
DC / DC Converter IC CaseLGA
Automotive Qualification Standard-
Switching Frequency1MHz
Prezentare generală a produsului
Miniature UltraBK™ 4A DC–DC converter module suitable for use in PCIe / server applications, FPGA and DSP, datacom / telecom systems, Distributed bus architectures (DBA), programmable logic and mixed voltage systems applications.
- Power-good output
- Over-current and over-temperature protection
- Remote on/off control
- Output voltage sense
- Ultra-thin high efficiency integrated power solution
- I2C 6.0-compatible serial interface operating up to 1MHz
Note
Compatible Enpirion P/N: EN2340QI, EN2342QI.
Specificaţii tehnice
Output Type
Adjustable
Topology
Synchronous Buck (Step Down)
Input Voltage Max
14.4V
Output Current
4A
No. of Pins
48Pins
Output Voltage - Nom
-
Output Voltage Max
1.8V
Efficiency
90.5%
Operating Temperature Max
105°C
Qualification
-
SVHC
No SVHC (07-Nov-2024)
Automotive Qualification Standard
-
No. of Outputs
1Outputs
Input Voltage Min
6V
Max Output Current
4A
IC Case / Package
LGA
IC Mounting
Surface Mount
Output Voltage Min
700mV
Switching Frequency Typ
1MHz
Operating Temperature Min
-40°C
Product Range
MYTNC Series
MSL
-
DC / DC Converter IC Case
LGA
Switching Frequency
1MHz
Documentaţie tehnică (3)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Thailand
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Thailand
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85423990
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:No SVHC (07-Nov-2024)
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.0006
