NLT8FX-BAG
Speaker / Loudspeaker Audio Connector, speakON STX, 8 Contact, Jack, Cable Mount
Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
ProducătorNEUTRIK
Nr. de reper producătorNLT8FX-BAG
Cod de comandă9991964
Gamă de produsespeakON STX
Cunoscut şi sub denumirea deGTIN UPC EAN: 7613187003912
Nu se mai produce
Detalii tehnice
ProducătorNEUTRIK
Nr. de reper producătorNLT8FX-BAG
Cod de comandă9991964
Gamă de produsespeakON STX
Cunoscut şi sub denumirea deGTIN UPC EAN: 7613187003912
Product RangespeakON STX
No. of Contacts8 Contact
GenderJack
Connector MountingCable Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialMetal Body
SVHCNo SVHC (17-Jan-2022)
Prezentare generală a produsului

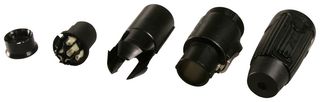

The NLT8FX-BAG from Neutrik is an 8 pole speakON female cable connector with black chrome metal housing and solder termination. This female cable connector is especially designed for heavy duty amplifier/loudspeaker applications.
- Current rating 40A continuous, 50A audio signal with 50% duty cycle
- Extremely robust metal housing designed for harsh and demanding environment
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Uses precise quick lock system
- Spring copper contacts with silver plating contacts and zinc die-cast shell
- Cable outer dimension range from 8mm to 20mm
- Rated insulation voltage is 250V
- Flammability rating meets UL94 HB
- Temperature range from -30°C to +80°C
Aplicaţii
Audio, Consumer Electronics
Note
This speakON cable connector is not to be used as an AC mains or power supply connector.
Specificaţii tehnice
Product Range
speakON STX
Gender
Jack
Contact Plating
Silver Plated Contacts
SVHC
No SVHC (17-Jan-2022)
No. of Contacts
8 Contact
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
Documentaţie tehnică (2)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Switzerland
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Switzerland
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85366990
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:No SVHC (17-Jan-2022)
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.12
