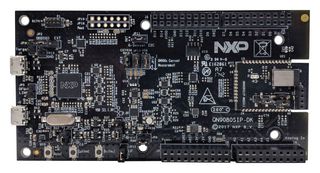

QN9080SIP-DK
Development Board, QN9080SIP Bluetooth Module, MCUXpresso, Arduino, NFC Antenna
Aveți nevoie de mai mult?
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 597,310 lei |
Detalii tehnice
Prezentare generală a produsului
A highly extensible platform for application development of QN9080SIP development kit enabled by QN9080SIP built on QN9080 Bluetooth MCU and NT3H2211 NTAG® supporting Bluetooth 5, generic FSK and NFC. The QN9080SIP also integrates 32MHz and 32KHz crystals, RF matching and 2.4GHz antenna. The QN9080SIP-DK kit contains a development board, a USB dongle and an NFC antenna. The development board integrates buttons, switches, piezo buzzer, LEDs for easy-use, provides SWD/JTAG and USB interface for debugging and is form-factor compatible with the Arduino® pin layout for more expansion options. The USB dongle is a Bluetooth device powered by QN9080.
- Fully certified module supporting Bluetooth and NFC
- Arduino® interface
- CMSIS-DAP (default) and the J-Link interface for debugging
- UART/I2C/SPI/USB connectivity support
- Full MCUXpresso support
- Reuse all QN9080 tools
- PCB inverted NFC antenna
- USB dongle for interaction with DK board
Cuprins
QN9080SIP-DK development board, QN9080 USB dongle, NFC antenna, USB cable.
Specificaţii tehnice
NXP
Wireless Connectivity
ARM
-
-
QN9080, NT3H2211
Bluetooth Low Energy
Cortex-M4F
Dev Kit QN9080/NT3H2211, USB Dongle, NFC Antenna, USB Cable
No SVHC (27-Jun-2024)
Documentaţie tehnică (1)
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Taiwan
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
