6500

The 6500 is a modular passive Oscilloscope Probe with readout actuator. It is recommended for general purpose probing applications and is adjustable for low and high frequencies. The probe's entire core is made of a high quality ceramic hybrid. Pure coaxial design and laser trimmed resistors ensure highest signal fidelity along the signal path offering high bandwidth and fast rise-times for accurate impulse measurements. Switchable probes offer unbreakable coaxial reed switches for changing between attenuation modes.

• Probe tips are interchangeable and can be replaced easily
• Spring loaded with needle sharp tips to support precise and safe measurements

Aplicaţii

Test & Measurement

Cuprins

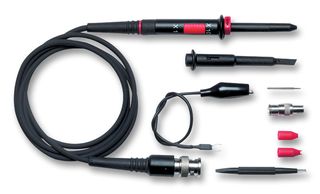

Oscilloscope probe, BNC adapter, Ground blade, Ground lead with alligator clip, Ground spring, IC caps (0.8, 1 and 1.27mm pitch), Insulating cap, Protection cap, Solid tip, Spring tip, Sprung hook, Trimmer tool, 2x Footer positioners and Copper pads.
