PSG03640

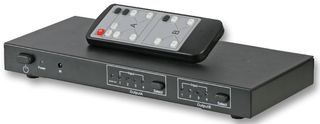

4x2 HDMI Matrix Switcher with Audio
Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
Nu se mai produce
Detalii tehnice
Prezentare generală a produsului
This HDMI 4x2 Matrix Switcher routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays.
- Switches easily between any four HDMI sources
- Distributes any of the four inputs to any or any combination of the two HDMI output displays
- 3D and HDMI v1.4 compliant
- 1080p maximum video resolution
- 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- 12-bit Per channel (36-bit all channel) deep colour
- Uncompressed audio such as LPCM supports
- Compressed audio such as DTS Digital, Dolby Digital (including DTS-HD & Dolby True HD)
- Controlled via front buttons or remote control (supplied)
- LED input selection indication
- Inputs/Outputs: HDMI sockets
- Dimensions (WxHxD): 258 x 25 x 112mm
- Supplied with remote control, power adaptor & user manual
- Audio out feature via 3.5mm Stereo Jack, Coaxial and TOSLink sockets
- When output A selected, audio passes through HDMI & 3.5mm stereo jack, coax & TOSLink at same time
- Allows you to connect to an amplifier
Specificaţii tehnice
SVHC
To Be Advised
Documentaţie tehnică (1)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85369010
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:To Be Advised
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):1.14
