QAM-TX3-433
RF Module, AM ASK Data Transmitter, 433 Mhz, 3V to 12V, 50m
50 Vă puteți rezerva stocul acum
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 40,690 lei |
| 5+ | 36,730 lei |
| 10+ | 32,110 lei |
| 50+ | 29,460 lei |
| 100+ | 27,030 lei |
| 250+ | 24,990 lei |
Detalii tehnice
Prezentare generală a produsului

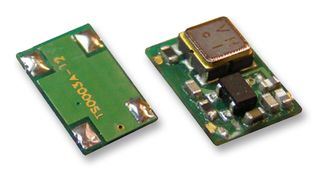

QAM-TX3-433 is an 433MHz AM transmitter module. The Quasar UK AM hybrid transmitter module provides a complete RF transmitter which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source. The module is very simple to operate and offers a wide operating voltage range, the RF Power output increases in line with the voltage level applied to the module. Data can be supplied directly from a microprocessor or encoding device. Thus keeping the component count down and ensuring a low hardware cost. The modules are compatible with the Quasar UK Ltd. Operates in range of AM receivers to provide a complete solution.
- Complete RF transmitter
- SAW resonator
- Transmit range up to 50m
- CMOS / TTL input
- No adjustable components
- Stable operating frequency
- Wide operating voltage (3-12v)
- ASK modulation
Aplicaţii
Wireless, Security, Industrial, RF Communications
Specificaţii tehnice
AM
433MHz
3V
12.5mA
-
3000bps
10dBm
12V
Data Capture, Garage Door Controller, Remote Gate Controls, Remote Sensing, Wireless Security System
