RCR-433-MPR
RF MOD, RX, ASK / OOK, SUPER-REGEN

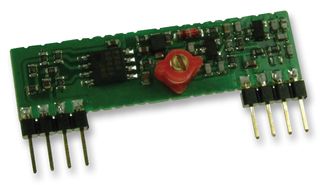

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
Nu mai este în stoc
Detalii tehnice
ProducătorRADIOTRONIX
Nr. de reper producătorRCR-433-MPR
Cod de comandă1565152
Fişă tehnică
RF ModulationASK, OOK
Data Rate Max4.8Kbps
Frequency433.92MHz
Sensitivity dBm-105dBm
Supply Voltage Min4.75V
Supply Voltage Max5.25V
Supply Current4mA
Supported Devices - RF Receivers-
RF Receiver Applications-
Product Range-
SVHCTo Be Advised
Prezentare generală a produsului
The RCR-433 MPR is a miniature receiver module that receives On-off keyed (OOK) modulation signal and demodulated to digital signal for the next decoder stage. Local Oscillator is made of L/C structure. RCR-433-MPR has excellent performance and simple to use. RCR-433-MPR is designed specifically for unlicensed remote control and wireless security receiver operating at 433MHz in USA under FCC Part 15 regulation.
- The module's frequency is from UHF (ASK) 280~433.92 MHz
- High sensitivity passive design
- 4800 B/S baseboard data rate
- simple to apply with low external parts count
- Low supply voltage
- ASK data shaping comparator Included
Aplicaţii
Building Automation, Sensing & Instrumentation, Lighting, Security, Medical, Industrial, Wireless
Specificaţii tehnice
RF Modulation
ASK, OOK
Frequency
433.92MHz
Supply Voltage Min
4.75V
Supply Current
4mA
RF Receiver Applications
-
SVHC
To Be Advised
Data Rate Max
4.8Kbps
Sensitivity dBm
-105dBm
Supply Voltage Max
5.25V
Supported Devices - RF Receivers
-
Product Range
-
Documentaţie tehnică (1)
Produse asociate
2 produse găsite
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:United States
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:United States
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:85235290
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:În aşteptare
SVHC:To Be Advised
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.0024
