44A1121-22-2/6-9

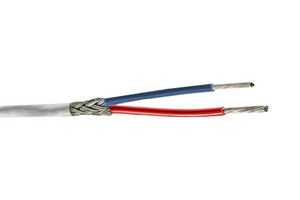

The 44A1121-22-2/6-9 is a 100m 2-core Screened Cable with tin-plated copper conductor and a shield, white PVF2 jacket. The 3822863005 SPEC 44 cable has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation cross-linked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). The result is a wire insulation system that offers a 150°C temperature rating, solder iron resistance and resistance to most solvents, fuels and lubricants. SPEC 44 cable is highly flame retardant, non-melting, does not cold flow and though mechanically very tough, is easy to handle and install using conventional tools.

• CPR: Not Yet Qualified
• Small size, light weight
• Low smoke and low corrosive gas generation
• Resistant to most chemicals and electrical arc tracking

Aplicaţii

Industrial, Commercial, Aerospace, Defence, Military, Avionics, Sensing & Instrumentation
