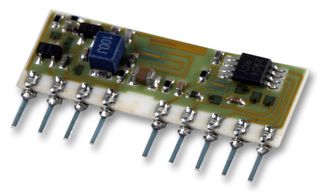

AM-HRR30-433

AM-HRR30-433 is an compact hybrid 433 MHz miniature AM Super-Regen receiver. The RF Solutions miniature AM 'Super Regen' receiver module is an extremely compact hybrid RF receiver can be used to capture undecoded data from any AM transmitter such as RF Solutions AM-RT4 / 5 range of transmitters. This module shows very high frequency stability over a wide operating temperature even when subjected to mechanical vibrations or manual handling. A unique laser trimming process which has been patented gives a very accurate on board inductor removing the need for any adjustable components. All receivers are compatible, producing a CMOS/TTL output and require connections to power and antenna only.

• 50% smaller than standard hybrid modules.
• Standard frequencies of 315, 433MHz
• Frequencies available of 300-450MHz
• Very high frequency stability (No Adjustable Components).
• Receiving range up to 50 meters.
• CMOS/TTL compatible output.
• Compatible with R.F. Solutions AM transmitters.
• Patented laser trimmed inductor.
• Compliant to ETSI300-220.
• Requires no radio license to operate.

Aplicaţii

Wireless, RF Communications
